EPICa Series EP-4646JD-SCSC

4U 64Bays 12Gb SAS to 12Gb SAS JBOD Enclosure Solution

EPICa Series EP-4646JD-SCSC

4U 64Bays 12Gb SAS to 12Gb SAS JBOD Enclosure Solution
  • proware-4u64bays-storage-front
  • proware-4u64bays-storage-leftsidebar
  • proware-4u64bays-storage-aerialview

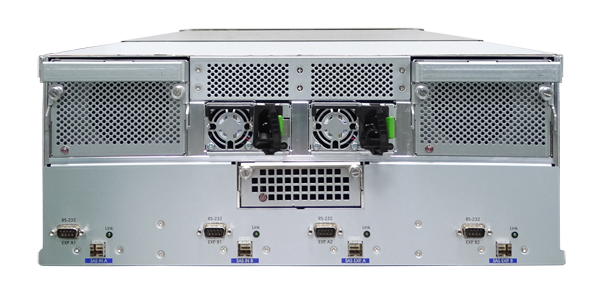

  • proware-4u64bays-j-storage-rear

Highest Density Available

  • 4U chassis with 64 bays carriers
  • Support the 3.5" enterprise class SAS3/SATA3 HDD drives
  • High Availability

  • Dual SAS Expander JBOD consist of four 4x mini SAS HD ports
  • Power Supply

  • Power supply and cooling system contained in 1 module for efficient cooling
  • Two 1100W redundant hot swappable power supplies
  • Enclosure

  • Incorporates SAS Expander on disk backplane for maximum signal integrity
  • Utilizes industry-standard SCSI enclosure services (SES) to monitor enclosure and disk environmental conditions
  • Enclosure monitoring

  • S.E.S. support for standard enclosure management
  • System LED indications
  • Fan speed monitoring
  • Power supply monitoring
  • System voltage monitoring
  • System temperature monitoring
  • System alarm
  • Your message has been sent. Thank you!
    * Please fill all required form field, thanks!

    The EPICa EP-4646JD-SCSC is a 19-inch 4U rackmount JBOD unit. It is a versatile SAS3 / SATA3 disk expansion system, ideal for high capacity and scalability storage in IT demands. The EP-4646JD-SCSC offers high density storage, hardware redundancy and easily integrates into versatile applications that request high performance and high scalability.

    The EPICa EP-4646JD-SCSC comes with dual SAS Expander JBOD configuration. It features a modular architecture for key components which ease system maintenance and management.

    Model EP-4646JD-SCSC
    JBOD Redundant
    Host Interface Two 4x mini SAS HD (12Gb/s)
    Disk Interface 12Gb/s SAS, 6Gb/s SATA
    SAS expansion Two 4x mini SAS HD (12Gb/s)
    Platform Rackmount
    Form Factor 4U
    # of Hot Swap Trays 64
    Tray Lock Yes
    Disk Status Indicator Access / Fail LED
    Disk Backplane SAS3 / SATA3
    # of PS/Fan Modules 1100W x 2 w/PFC
    # of Fans 15
    Monitor port support Yes
    Power requirements AC 100V ~ 240V Full Range, 15A~7.5A, 47Hz~63Hz
    Default Slide Rail: Post to Post 800mm~1090mm (32”~42”) / Option: Post to Post 750mm~900mm (29”~35”)
    Relative Humidity 10% ~ 85% Non-condensing
    Operating Temp 10°C ~ 40°C (50°F ~ 104°F)
    Physical Dimensions 880(L) x 482.6(W) x 177(H) mm
    Weight (Without disk) 43.5 / 45 Kg
    ※ Specification is subject to change without notice. All company and product names are trademarks of their respective owners.
    ep-4646jd_scsc.pdf EP-4646JD-SCSC_v1.1.pdf
    Datasheet Manual
    [254KB] [3.98MB]
