miniEPICa Series EP-B325-AA

3.5” 3 to 5 Bays SATA II – SATA II Internal RAID BOX


miniEPICa Series EP-B325-AA

3.5" 3 to 5 Bays SATA II – SATA II Internal RAID BOX

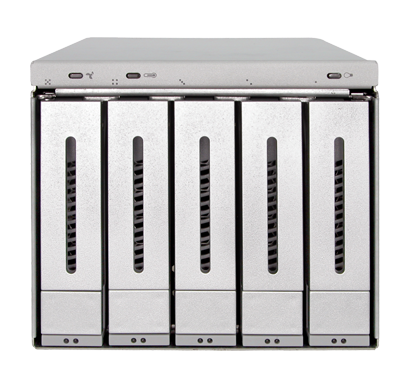

  • proware-minidesktop-storage-front
  • proware-minidesktop-storage-frontsidebar
  • proware-minidesktop-storage-rear

Features

  • SATA II (3Gbps) host interface
  • Over 2TB support
  • Supports hot spare and automatic hot rebuild
  • Local event notification
  • Easy management via In-Band data bus
  • Transparent data protection for all popular operating systems
  • RAID Management

  • Real time drive activity and status indicators
  • Graphical User Interface (GUI) management utility
  • Your message has been sent. Thank you!
    * Please fill all required form field, thanks!
    Unsurpassed Value
  • Most cost-effective SATA II RAID subsystem
  • Compact Desktop size with stylish design
  • Application Flexibility
  • Extends useful life by adapting to future IT/SOHO requirements
  • Easy Installation & Maintenance
  • Provide a fast and easy way to install and manager the storage
  • Low Power Consumption
  • Cable-less backplane with integrated RAID processor. No more unnecessary components inside
  • Model EP-B325-AA
    RAID processor Integrated Micro processor
    RAID level 0, 1, 3, 5, 10, LARGE, CLONE
    No. of channels(host+drive) 1 + 5
    Host bus interface SATA II
    Drive bus interface SATA II (Up to 3.0Gbps)
    Data transfer rate Up to 3.0Gbps (SATAII)
    Hot-swap drive trays Five (5) 3.5-inch Disk trays
    Cooling fan 1
    Failed drive indicator Yes
    Failed drive auto rebuild Yes
    Environment monitor Yes
    Auto spare support Yes
    Over 2TB support Yes
    Environmental
    Relative Humidity 10% ~ 85% Non-condensing
    Operating Temp 10°C ~ 40°C (50°F ~ 104°F)
    Physical Dimensions 127(H) x 146(W) x 230(D)mm
    Weight (without drives) 2.05Kg
    * Specification are subject to change without notice.
    All company and product names are trademarks of their respective owners.
    ep-b325-b225aa.pdf ep-b325-aa_v1.3.pdf
    Datasheet Manual
    [369KB] [2.62MB]
