EPICa Series EP-4246J/JD-SCSC

4U 24Bays 12Gb/s SAS JBOD Enclosure Solution

windows server 2012r2 windows server 2012r2 windows server 2012r2

EPICa Series EP-4246J/JD-SCSC

4U 24Bays 12Gb/s SAS JBOD Enclosure Solution
windows server 2012r2 windows server 2012r2 windows server 2012r2
  • proware-4u24bays-storage-front
  • proware-4u24bays-j-storage-rear

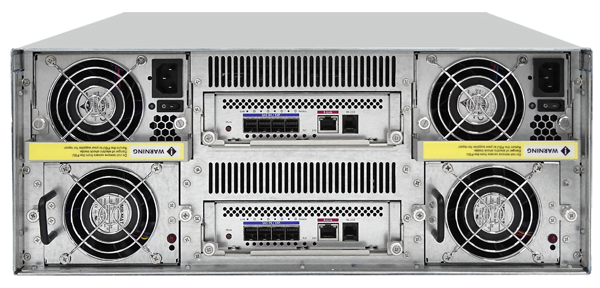

  • proware-4u24bays-jd-storage-rear

Highest Density Available

  • 4U chassis with 24 bays carriers
  • Support the 2.5" / 3.5" enterprise class SAS3/SATA3 HDD or SSD drives
  • High Availability

  • Single or dual SAS JBOD controller module
  • Each SAS JBOD controller module consist of four 4x mini SAS HD ports
  • Utilizes LSI DataBolt bandwidth optimizer technology
  • Power Supply

  • Power supply and cooling system contained in 1 module for efficient cooling
  • Two 500W redundant hot swappable power supplies
  • Enclosure

  • Incorporates a cableless design for maximum signal integrity
  • Utilizes industry-standard SCSI enclosure services(SES) to monitor enclosure and disk environmental conditions
  • Enclosure monitoring

  • S.E.S. support for standard enclosure management
  • System LED indications
  • Fan speed monitoring
  • Power supply monitoring
  • System voltage monitoring
  • System temperature monitoring
  • System alarm
  • Your message has been sent. Thank you!
    * Please fill all required form field, thanks!

    The EPICa EP-4246J/JD-SCSC is a 19-inch 4U rackmount JBOD unit with optimized solutions for servers and external storage systems. It features the latest SAS 3.0 12Gb/s interface and designed to fit in with the environments which needed highly reliable and relentless data growth.

    EP-4246J/JD-SCSC incorporates the latest enhancements in SAS along with LSI DataBolt bandwidth optimizer technology (EDFB, End Device Frame Buffering). Using DataBolt, it delivers optimized throughput by allowing users to gain 12Gb/s host speeds with current-generation 6Gb/s drives. The EP-4246J/JD-SCSC is also a versatile SAS3 / SATA3 disk expansion system, ideal for high capacity and scalability storage in IT demands. The EP-4246JD series also supports dual JBOD controllers which provide better fault tolerance and higher reliability of system operation. The EP-4246J/JD-SCSC offers GUI management to monitor enclosure environmental conditions through a remote connection.

    Model EP-4246J/JD-SCSC
    JBOD Controller Single / Redundant
    Host Interface Two 4x mini SAS HD (12Gb/s) / Four 4x mini SAS HD (12Gb/s)
    Disk Interface 12Gb/s SAS, 6Gb/s SATA
    SAS Expander Two 4x mini SAS HD (12Gb/s) / Four 4x mini SAS HD (12Gb/s)
    Enclosure
    Platform Rackmount
    Form Factor 4U
    # of Hot Swap Trays 24
    Disk Status Indicator Access / Fail LED
    Backplane SAS / SATA Single BP
    # of PS/Fan Modules 500W x 2 w/PFC
    # of Fans 4
    Monitor port support Yes
    Power requirements AC 90V ~ 264V Full Range , 10A ~ 5A , 47Hz ~ 63Hz
    Environmental
    Relative Humidity 10% ~ 85% Non-condensing
    Operating Temp 10°C ~ 40°C (50°F ~ 104°F)
    Physical Dimensions 607(L) x 482 (W) x 176(H) mm
    Weight (Without disk) 26.5 / 27.5Kgs
    ※ Specification is subject to change without notice. All company and product names are trademarks of their respective owners.
    ... ...
    Firmware Release Note
    [308KB] [12.7KB]
    ep-4246jjd-scsc.pdf EP-4246J_JD-SCSC_v1.0.pdf
    Datasheet Manual
    [668KB] [3.71MB]
    ※ 2 Servers each with 1 HBA, 4 EP-4246JD in 2 node Cluster Configuration
    ※ 2 Servers each with 2 HBAs, 4 EP-4246JD in 2 node Cluster Configuration
    ※ 2 Servers each with 2 HBAs, 2 EP-4246JD in 2 node Failover Cluster and Multipath (MPIO)
    ※ 2 Servers each with 1 HBA, 6 EP-4246JD in 2 node Cluster Configuration
    ※ 2 Servers each with 2 HBAs, 6 EP-4246JD in 2 node Cluster Configuration
