EPICa Series EP-1401-C3A

1U 4Bays, USB 3.0, eSATA,1394b - SATA II RAID Subsystem


EPICa Series EP-1401-C3A

1U 4Bays, USB 3.0, eSATA,1394b - SATA II RAID Subsystem
  • proware-1u4bays-storage-front

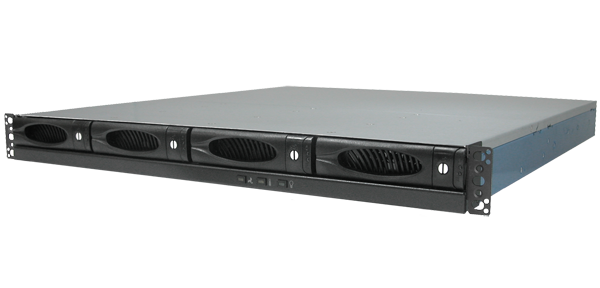

  • proware-1u4bays-storage-frontsidebar
  • proware-1u4bays-storage-rear

Features

  • USB 3.0 (5Gbps) / eSATA (3Gbps) / 1394b (800Mbps) host interface
  • Supports hot spare and automatic hot rebuild
  • Local event notification
  • Easy management via In-Band data bus
  • Transparent data protection for all popular operating systems
  • Your message has been sent. Thank you!
    * Please fill all required form field, thanks!
    Unsurpassed Value
  • Most cost-effective SATA II RAID subsystem
  • Application Flexibility
  • Provides varied RAID level for extends useful life by adapting to future IT requirements
  • Easy Installation & Maintenance
  • Provide a fast and easy way to install and manager the storage
  • Easy selectable interface make user a convenient way to maintain the storage by locally RAID Level switch
  • Low Power Consumption
  • Disks backplane inside which with integrated RAID processor. No more unnecessary components inside
  • RAID Management
  • Real time drive activity and system status indicators
  • Locally switch for RAID level maintenance
  • Graphical User Interface (GUI) management utility
  • Model EP-1401-C3A
    Form-factor 1U 19-inch rackmount chassis
    RAID processor Integrated Micro processor
    RAID level 0 , 1 , 3 , 5 , 10 , LARGE
    No. of channels(host+drive) 1 + 4
    Host bus interface eSATA * 1 / USB 3.0 * 1 / 1394b * 2
    Drive bus interface SATAII (Up to 3.0Gbps)
    Data transfer rate Support up to 5Gbps (USB 3.0)
    Support up to 3Gbps (eSATA)
    Support up to 800Mbps (1394b)
    Hot-swap drive trays Four (4) 3.5-inch Disk trays
    Cooling fans 1
    Management Interface Locally RAID Level Switch / In-Band GUI
    Failed drive indicators Yes
    Failed drive auto rebuild Yes
    Environment monitor Yes
    Auto spare support Yes
    Over 2TB support Yes
    Power supply 220W with PFC
    Power requirements AC90V ~ 264V Full range
    5A~3A , 50 ~ 60Hz
    Environmental
    Relative Humidity 10% ~ 85% Non-condensing
    Operating Temp 10°C~40°C (50°F ~ 104°F)
    Physical Dimensions 44 (H) x 446.4 (W) x 550 (D)mm
    Weight (Without Disk) 6.8Kg
    Specification are subject to change without notice. All company and product names are trademarks of their respective
    ... ...
