EPICa Series EP-4806J/JD-S6S6

4U 80Bays 6Gb SAS JBOD Enclosure Solution

windows server 2012r2 windows server 2012r2 windows server 2012r2

EPICa Series EP-4806J/JD-S6S6

4U 80Bays 6Gb SAS JBOD Enclosure Solution
windows server 2012r2 windows server 2012r2 windows server 2012r2
  • proware-4u80bays-storage-front

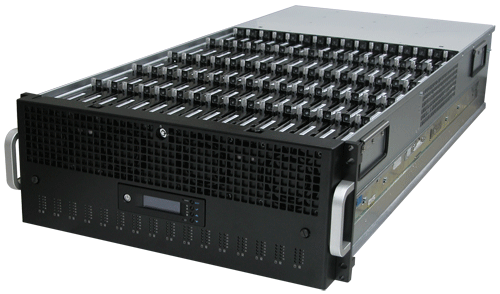

  • proware-4u80bays-storage-aerialview
  • proware-4u80bays-j-storage-rear
  • proware-4u80bays-jd-storage-rear

Features

  • High-density 4U chassis with 80 bays carriers
  • Simultaneously support SAS2 or SATA3 disk
  • Single or dual active/active SAS JBOD controller module
  • Each SAS JBOD controller module consist of four mini SAS (4x) ports
  • GUI based SES Management tool to remotely monitor the system
  • Fully Redundant & Hot Pluggable Modular Design
  • Four 650W high efficiency redundant hot swappable power supplies
  • Your message has been sent. Thank you!
    * Please fill all required form field, thanks!

    The EPICa EP-4806J/JD-S6S6 is a ultra high density 19-inch 4U rackmount JBOD unit. It features the latest SAS2 (6Gb/s) interface and designed to fit in with the environments which needed highly reliable and relentless data growth. The EP-4806J/JD-S6S6 is also a versatile SAS2 / SATA3 Disk Expansion system, ideal for high capacity and scalability storage in IT demands. Based on the 6G SAS2.0 technology, the EP-4806J/JD-S6S6 supporting the choice of SAS2 and SATA3 drive configurations to deliver the best cost-performance index with higher bandwidth.

    Enclosure monitoring
  • S.E.S. support for standard enclosure management
  • System LED indications
  • Fan speed monitoring
  • Power supply monitoring
  • System voltage monitoring
  • System temperature monitoring
  • System alarm
  • Model EP-4806J/JD-S6S6
    RAID Controller JBOD
    Controller Single / Redundant
    Host Interface Two / Four 6Gb/s SAS (SFF-8088)
    Disk Interface 6Gb/s SAS, 6Gb/s SATA
    SAS Expander Two / Four 6Gb/s SAS (SFF-8088)
    Capacity
    Direct Attached 80 Disks
    Expansion Refers to controller specification
    Monitor Port support Yes
    Enclosure
    Platform Rackmount
    Form Factor 4U
    # of Hot Swap Trays 80
    Tray Lock Yes
    Disk Status Indicator Access / Fail LED
    Backplane SAS / SATA
    # of PS/Fan Modules 650W x 4 (with PFC)
    # of Fans 12
    Power requirements AC 90V ~ 264V Full Range, 50Hz ~ 60Hz, 10A-5A
    Default Slide Rail: Post to Post 800mm~1090mm (32"~42") / Option: Post to Post 750mm~900mm (29"~35")
    Environmental
    Relative Humidity 10% ~ 85% Non-condensing
    Operating Temp 10°C ~ 40°C (50°F ~ 104°F)
    Physical Dimensions 950(L) x 482.6(W) x 177(H) mm
    Weight (Without disk) 45.5 / 48Kgs
    ※ Specification is subject to change without notice. All company and product names are trademarks of their respective owners.
