EPICa Series EN-3163S6T-RQX

NAS/DAS(SAS/Fiber)/iSCSI All-in-One RAID Subsystem

citrix_ready

EPICa Series EN-3163S6T-RQX

NAS/DAS(SAS/Fiber)/iSCSI All-in-One RAID Subsystem
citrix_ready

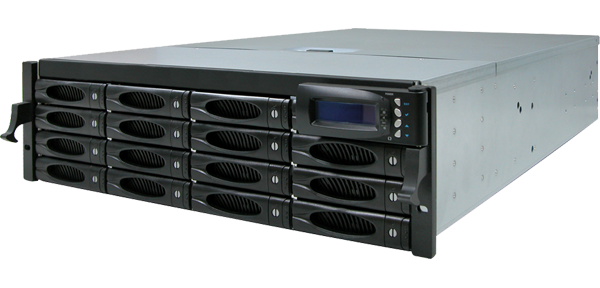

  • proware-nas-3u16bays-storage-front
  • proware-nas-3u16bays-storage-leftsidebar
  • proware-nas-3u16bays-storage-rear-2

NAS Features

  • Account Manager support NIS
  • Allows online capacity expansion within the enclosure
  • Backup to Cloud (Amazon S3)
  • Backup/Restore from attached storage (USB/eSATA/iSCSI/RDX/USM)
  • Backup/Restore from remote share (CIFS/NFS)
  • Bonjour Protocol, easily connect to NAS
  • Compression (Support on ZFS file system)
  • Central data and storage management
  • Data backup via backup plan/schedule
  • Data copy (1:1)
  • Deduplication (Support on ZFS file system)
  • EXT4 support extend over 16TB
  • HA support Active-Standby mode
  • HA support iSCSI/FC volume
  • HA support Two nodes
  • iSCSI/FC/share volume replication
  • ISO mount
  • Latest volume snapshot technology
  • Local and external account management, support large account import
  • Online expansion file system
  • Plug-in management
  • Select share or file for backup/restore
  • Share management and permission (support ACL setting)
  • Support Fiber target for Fiber SAN (Optional)
  • Support Internet Gateway
  • Support iSCSI target for IP SAN
  • Support iSCSI initiator
  • Support iSCSI multi host
  • Support e-mail notification, SNMP Trap/MIB and system log
  • System configuration backup/restore
  • SSD Caching (Read cache, Support on ZFS file system)
  • Thin Provisioning
  • Volume Clone (EXT3/EXT4/XFS/NTFS/VMFS/ZFS)
  • Volume replication to enhance data protection
  • Volume switch between iSCSI and FC Target
  • VMware ESXi 5 iSCSI/FC/NFS VAAI support
  • Wizard-oriented GUI design
  • WORM (Write Once Read Many) support CIFS/NFS
  • Your message has been sent. Thank you!
    * Please fill all required form field, thanks!

    As the number of users and the amount of data grows, how to find a storage which can offer complete data protection, good performance, with reliability and high scalability is the key for all enterprises and companies.

    The EN-3163 6G SAS NAS is a Unified storage system, which supports NAS/DAS(SAS/Fiber)/iSCSI based on latest proNAS 3.1 operating system. Except for basic NAS functions, it supports a variety of advanced storage management and application features such as VAAI, HA, Thin-Provisioning, etc, and it can be deployed easily in any IT environment since it supports multiple interfaces for different host server and clients.

    EN-3163 6G is highly scalable for storage capacity and host interfaces. With SAS JBODs, it can support up to 128 drives, up to 512TB, and users can just add on JBOD for capacity expansion when needed. There are 1Gb/s Ethernet ports as default I/O interface, and more 1Gb/s or 10Gb/s NICs can be added on to enhance system performance. Installing Fibre HBA on NAS can have NAS connecting to Fibre SAN, so it will be seamless connection for EN-3163 to your IT installment.

    For data protection, EN-3163 supports RAID level 0, 1, 10(1E), 3, 5, 6, 50, 60 and JBOD mode, and drives can be set hot spares, have automatically hot rebuilding and online capacity expansion within the enclosure. EN-3163 has a fully-featured backup solution including manual or scheduled backup for file, folder, and shares, and it can be backup and restore from multiple local or remote devices. And there are volume clone, snapshot, remote replication, and data copy for options, which are all designed to ensure and enhance your precious data.

    EN-3163S6T-RQX
    H/W Platform
    Intel Quad Core Xeon 1.8G or above, single / dual Processor
    Cache memory: 8GB DDR3 SDRAM up to 144GB
    Two Gigabit Ethernet ports (10 Gigabit Ethernet for options)
    Up to Sixteen 2.5"/3.5" hot-swappable 6Gb/s SAS/SATA hard drives
    Real-time drive activity and status indicators
    Environmental monitoring unit
    Two(2) 460W 80plus hot-swappable power supplies with PFC
    Spare PCI-E slot for H/W upgrade
    One(1) 4x SAS host port for RAID host connection
    One(1) 4x SAS port for JBOD (up to 7 SAS JBOD enclosures, max. 128 disks)
    One(1) 4x SAS HBA port for DAS connection (max. 128 disks with 1 RAID + 7 JBOD enclosures)
    RAID Controller Specifications
    800MHz RAID-On-Chip storage processor
    Support RAID level: RAID 0, 1, 10(1E), 3, 5, 6, 50, 60 and JBOD
    Onboard 2GB ECC/Registered cache memory
    Support drive hot spare and automatic hot rebuild
    Support MAID (spin down drives when not in use)
    Allow online capacity expansion within the enclosure
    Locally audible event notification alarm
    Storage Management
    Volume management (Support ZFS, XFS, EXT3 and EXT4 file system)
    Support SSD Caching, Compression and Deduplication (Support on ZFS file system)
    Disk usage statistics
    Hot spare drives
    iSCSI Target manager: Support LUN Mapping/Initiator Filter/Thin Provisioning
    FC Target manager: Support LUN Mapping/Thin Provisioning
    VAAI support for iSCSI/FC/NFS
    General
    Independent file server
    Multiple language support
    Support UPS
    Support LV encryption
    System Management
    Automatic IP address configuration
    Web browser-based management
    SNMP management and notification
    Fail-free online firmware upgrade
    Unicode support
    Multi-node management GUI
    System configuration backup/restore
    Central management
    Quick wizard
    Networking
    Support NIC/Trunking/Load Balance/Fail Over/802.3ad
    DHCP Server/DHCP Client
    WINS Server
    Internet gateway
    DDNS
    Protocols
    TCP/IP, SMB/CIFS, NFS, SNMP, FTP/SFTP/FXP, HTTP, HTTPS, Telnet, SSH, AFP, WebDAV, Bonjour, TFTP
    Client Operating Systems Support
    Microsoft® Windows® 98/ME/NT/2000/XP/2003/Vista/2008/Win7/Windows 2012/Win 8/Win 10/2016
    Unix/Linux
    Mac OS
    Authentication
    Local user account/group
    Microsoft NT Domain Controller (PDC)
    Microsoft Active Directory Authentication (ADS)
    Network Information Service (NIS)
    Support OpenLDAP service
    Support creating users by batch
    User quota management
    Share level security
    File level security
    User ID security for NFS
    Recycle bin (Samba)
    File access log, audit (Samba)
    Write Once Read Many (WORM)
    Block Storage
    iSCSI Target Support
    Fiber Target Support (optional)
    Thin Provisioning support
    VMware VAAI support
    Virtualization
    VMware/Citrix/Hyper-V
    VMware VAAI for NFS support
    Attached Storage
    ISO Mount
    USB/eSATA*/iSCSI initiator
    Data Backup / Restore
    Volume Clone (EXT3/EXT4/XFS/NTFS/VMFS/ZFS)
    Symantec BackupExec Agent (by additional installation)
    Scheduling multi-snapshot (Support iSCSI & FC snapshot)
    Replication (Remote realtime data mirroring)
    proNAS High-Availability (Two(2) nodes HA) (optional)
    Scheduling Rsync Replication
    Support NetVault backup client (by additional installation)
    Support CA ARCserve (by additional installation)
    Data copy (copy files to other share/attached storage)
    Scheduling backup
    Differential/incremental backup
    iSCSI/FC Replication
    Amazon S3 backup
    backup/restore from attached storage (USB/eSATA*/iSCSI/RDX*/USM*)
    Support Apple Time Machine
    Plug-in management
    Anti-Virus
    Central management
    iTunes Server
    Virtualization (VM on NAS)
    Power requirements
    AC 100V ~ 240V Full range 10A ~ 5A, 47~63Hz
    Environmental
    Relative Humidity: 10%~85% Non-condensing
    Operating Temp: 10°C ~ 40°C (50°F ~ 104°F)
    Physical Dimensions: 133(H) x 482(W) x 730(D) mm
    * By OEM request.
    Specification are subject to change without notice. All company and product names are trademarks of their respective owners.
